Model AS-500

U.S. Army Advanced Combat Helmet. The cornerstone of Our Legacy Series.

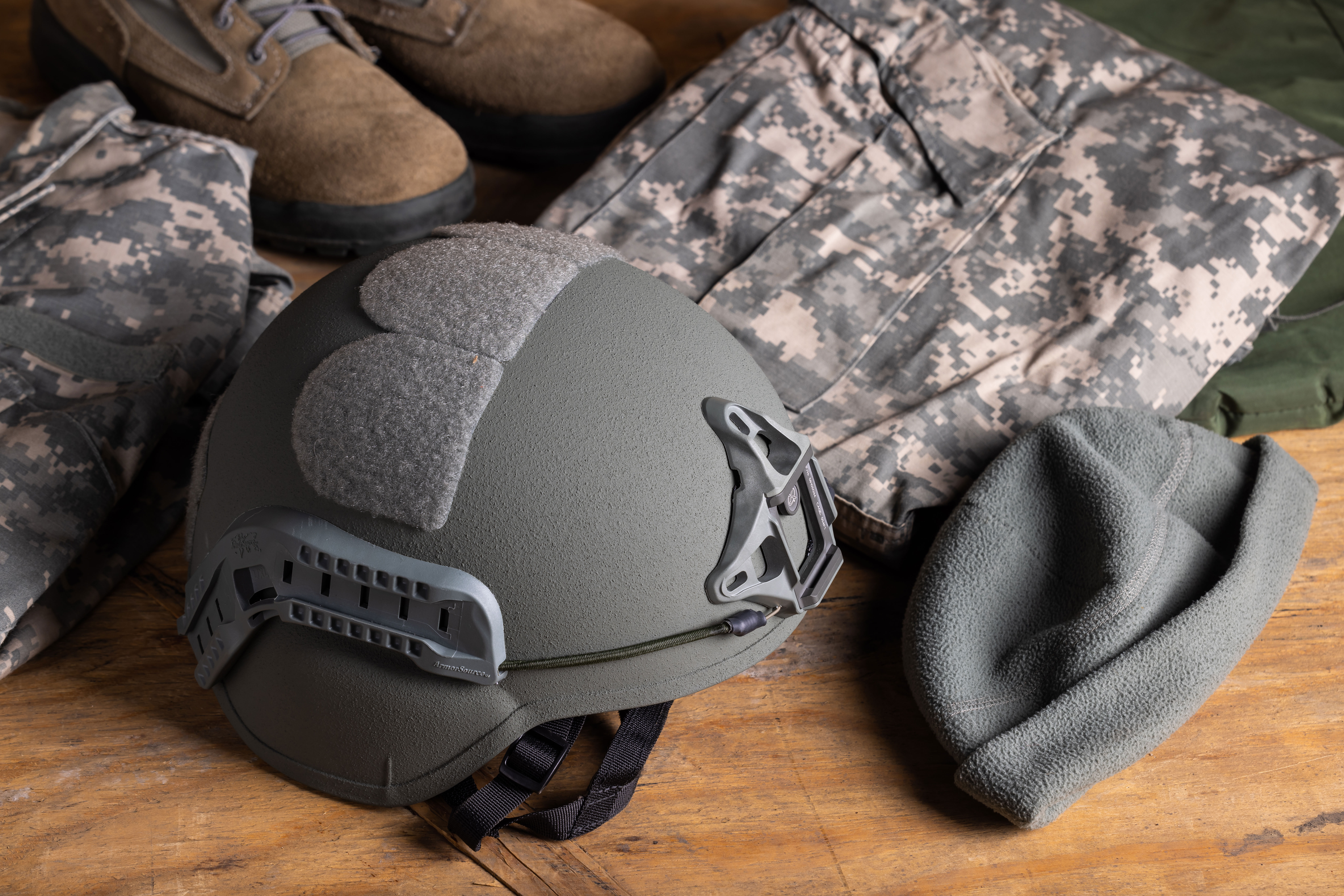

The ArmorSource AS-500 ACH (Advanced Combat Helmet) is a cornerstone within our line up of legacy model products and has built a reputation as a longstanding, trusted U.S. Army combat helmet.

This battle proven ballistic solution provides high levels of protection against a wide spectrum of small fragment and handgun bullets and has undergone extensive testing methods to improve the safety of today's service member in the field.

U.S. Army Advanced Combat Helmet. The cornerstone of Our Legacy Series.

The ArmorSource AS-500 ACH (Advanced Combat Helmet) is a cornerstone within our line up of legacy model products and has built a reputation as a longstanding, trusted U.S. Army combat helmet.

This battle proven ballistic solution provides high levels of protection against a wide spectrum of small fragment and handgun bullets and has undergone extensive testing methods to improve the safety of today's service member in the field.

High Cut + AireLock Liner System

Mid Cut + Airelink Plus / AireSupport

Regular Cut + AireLink Plus & AireSupport Prime

Regular Cut (No Accessories) + AireLink & AireSupport

Features

Provides high protection against a wide spectrum of small fragments as well as handgun bullets

Battle-proven and used extensively in Iraq and Afghanistan theaters

Features a shape used and accepted by the U.S. Government and other military organizations worldwide

Proudly made in the USA

DOWNLOAD DATASHEET PDF

System Snapshot

Shape / Design
U.S. Army ACH Geometry
Shell Construction
Proprietary blend of Aramid and Composite Materials
Ballistic Protection
U.S. Army GL/PD 19-06 (to replace CO/PD 05-04); NIJ level IIIA 0108.01/0106.01
Fragments Protection
2, 4, 16, 17 and 16 grain in accordance with U.S. Army GL/PD 19-06
9mm BFD / Trauma
Meets U.S. Army GL/PD 19-06
Environmental / Mechanical Protection / Design
Meets the U.S. Army GL/PD 19-06
Certification
From an NIJ certified laboratory
Available Head Sizes
X-Small / Small / Medium / Large / X-Large / XX-Large
Available Shell Sizes
Small / Medium / Large / X-Large
Extreme Testing Conditions
Performs under temperature between 160°F (71°C) and -60°F (-51°C); Performs after 3 hours sea water immersion
Configurations
100% Boltless (Durability Verified)
Use
Military Troops; Law Enforcement

Available Colors

Foliage Green
Olive Green
Sniper Black
Desert Tan
Coyote Brown

Available Cuts

High-Cut
Mid-Cut
Regular-Cut

Shell Info

Shell Thickness
0.4” (±0.1") / 10 mm (±2.5mm)
Finished Shell Nominal Weight*
Medium 2.7 lbs. / 1.22 Kg; Large 2.9 lbs. / 1.32 Kg; X-Large 3.2 lbs. / 1.45 Kg
Surface Area
Regular-cut: Medium - 164 in2 (1,064 cm2); Large - 176 in2 (1,134 cm2); X-Large 193 in2 (1,243 cm2)

* Regular-cut Shell

System Info

Finished Helmet Nominal Weight**
Medium 3.1 lbs. / 1.4 Kg; Large 3.3 lbs. / 1.5 Kg; X-Large 3.6 lbs. / 1.63 Kg
Fully-Loaded High-Cut Nominal Weight***
Medium 3.1 lbs. / 1.42 Kg; Large 3.3 lbs. / 1.52 Kg; X-Large 3.6 lbs. / 1.66 Kg

** A Regular-cut helmet installed with retention and suspension systems *** Special Command configuration: the complete kit, with ASR side-rails, NVG Shroud and Operational Loop System

System Capabilities Checklist

Ballistic Performance*

US Army ACH Gen II Spec
NIJ Level IIIA
Fragmentation Protection
BFD / Trauma

Environmental Performance

US Army ACH Specs
Blunt Impact
Compression Resistance
Accelerated Aging
Advanced Boltless Adhesive System
Impact Resistant

Compatibility & Add-ons*

Universal side-rails
NVG Mount
Operational Loop System
Counterweight
Camouflage Cover
Strap Extenders
Visor / Goggles
Communications / Ear Protection
Gas Mask
Carrying Bag

* In accordance with ArmorSource technical specifications and applicable standards

Other Products

Retention Systems Suspension Systems Accessories

Available Suspension Systems

AireLock Liner System

Next Generation Liner system

(Space Black)

AireSupport Prime

Advanced Suspension System

(Black / Foliage)

AireSupport

Standard Suspension System

(Black / Foliage)

Available Retention Systems

AireLink Plus

Dial Retention System

(Black / Foliage / Tan / Green / Coyote)

AireLink

Standard Retention System

(Black / Foliage / Tan / Olive / Coyote)

Available Mount Systems

Lanyard

ASR Side-rails

Universal Side Rails

()

AireMount

The Lightest NVG Shroud on the Market.

(Black / Foliage / Olive / Tan / Coyote)

AireRail

The Lightest Universal Rails on the Market.

(Black / Foliage / Olive / Tan / Coyote)

Available Accessories

Operational Loop System

(Black / Foliage / Olive / Coyote / Tan)

Counterweight

(Black / Green / Tan)

Helmet cover

Carrying bag

(Black / Coyote)

Strap Extender

(Green / Black / Tan)

Additional Information

Click to learn more about ArmorSource helmet technology and see what makes our products best in class.

Ballistic Effectiveness
We protect the world's most demanding users with proven ballistic performance. Compare the effectiveness of our products side by side.
Helmet Comparisons
Our goal is to reduce overall product weight while improving ballistic performance. Browse our helmets in a top level comparison of all models side by side.
Boltless Technology
With innovative product advancements, like our Boltless Solutions and Advanced Adhesive Technology we continue to push the boundaries.
Customizable Platforms
Our products are designed to serve the user in the most adaptable way with the highest level of compatibility for common accessories, apps and add-ons.
Next Generation 411
Our GEN II products deliver superior performance with overall weight reduction, improved ballistic performance, decreased weight strain and optimal safety.

How to Fit Your Helmet

Getting the right fit is important for performance and comfort. Use a tape measure and caliper to take measurements. The wearer MUST be seated in an upright position for proper fitting. See the illustrations for correct measuring points.

NOTE: If any measurement falls on the dividing line between sizes, select the larger size.

Head Length
Head Width
Circumference

Measure completely around head

Helmet Size
Head Length
Head Width
Circumference
Small
UP TO 7¼" / 184 mm
UP TO 6½" / 162 mm
UP TO 21¼" / 538 mm
Medium
7¼" / 184 mm to 7¾" / 198 mm
UP TO 6½" / 162 mm
21¼" / 538 mm to 22½" / 573 mm
Large
7¾" / 198 mm to 8¼" / 210 mm
UP TO 6½" / 162 mm
22½" / 573 mm to 23½"/ 597 mm
Extra-Large
8¼" / 210 mm and over
6½" / 162 mm and over
23½"/ 597 mm and over
